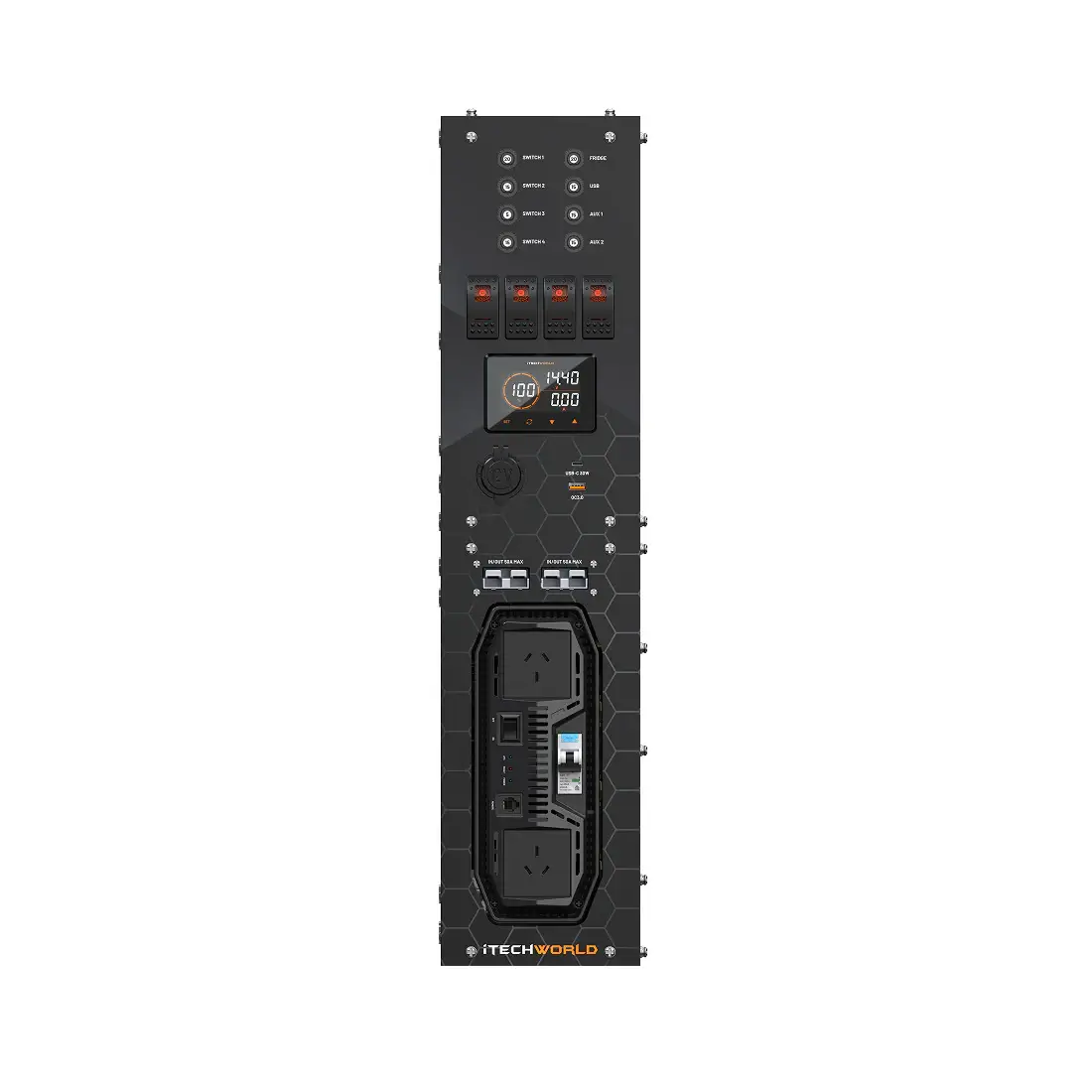

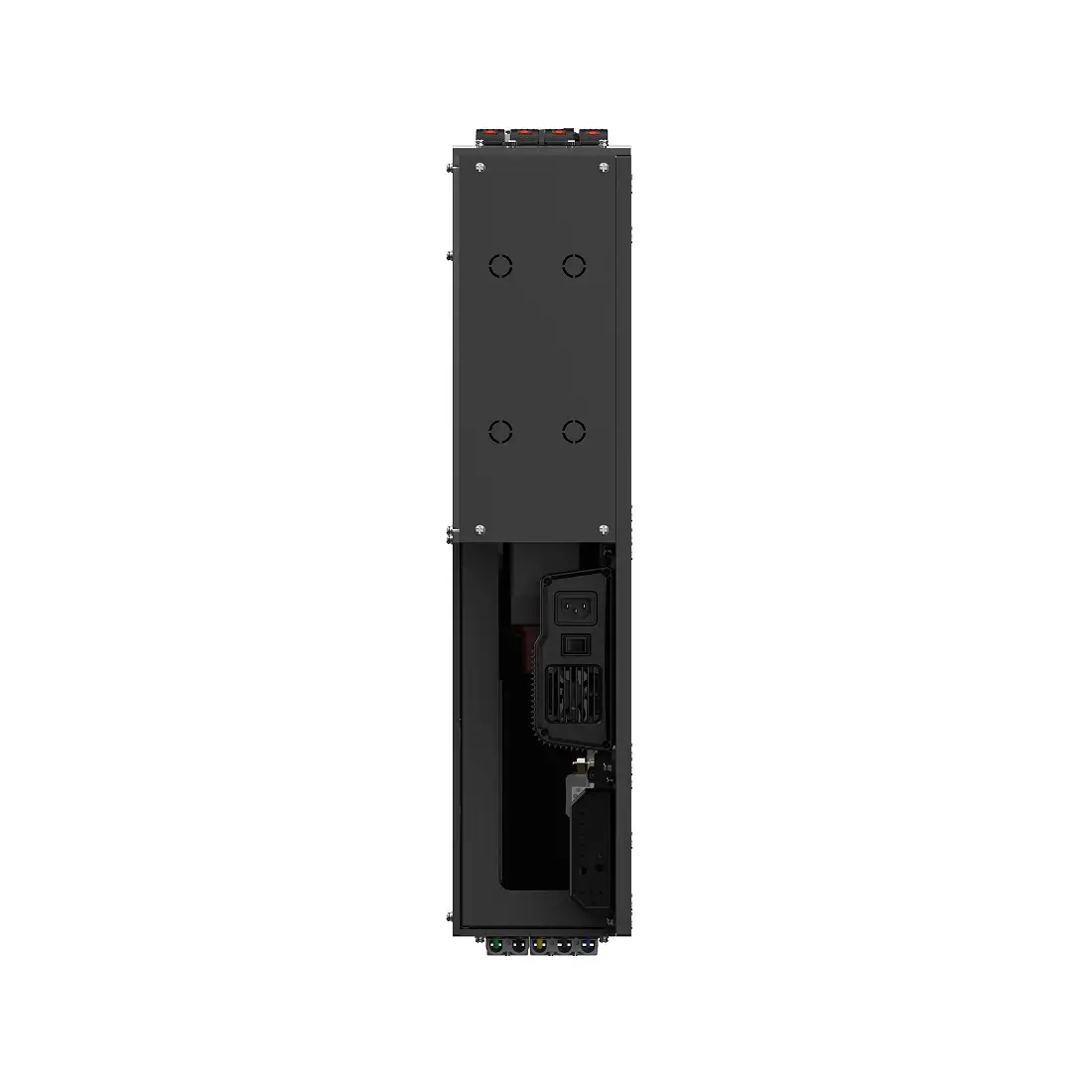

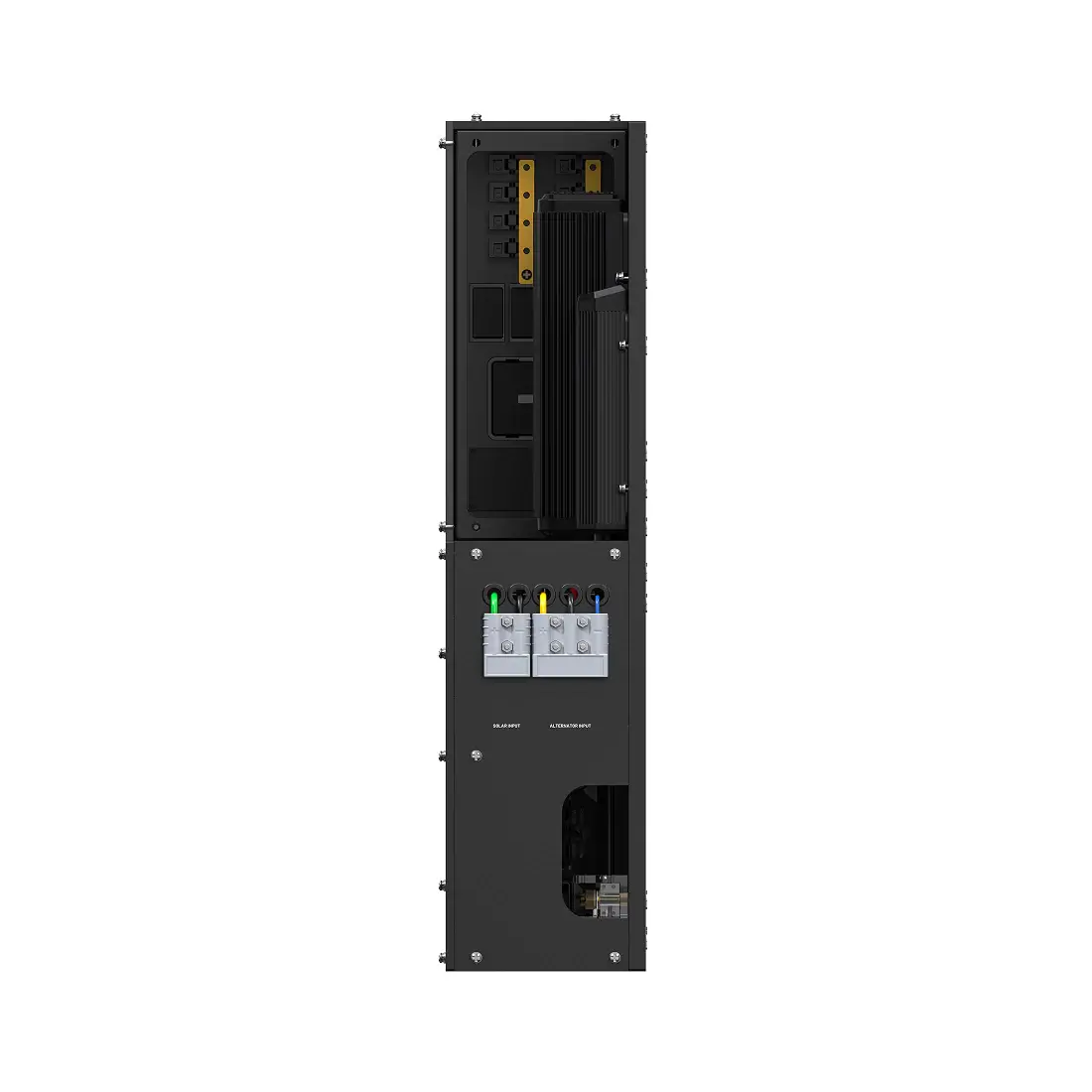

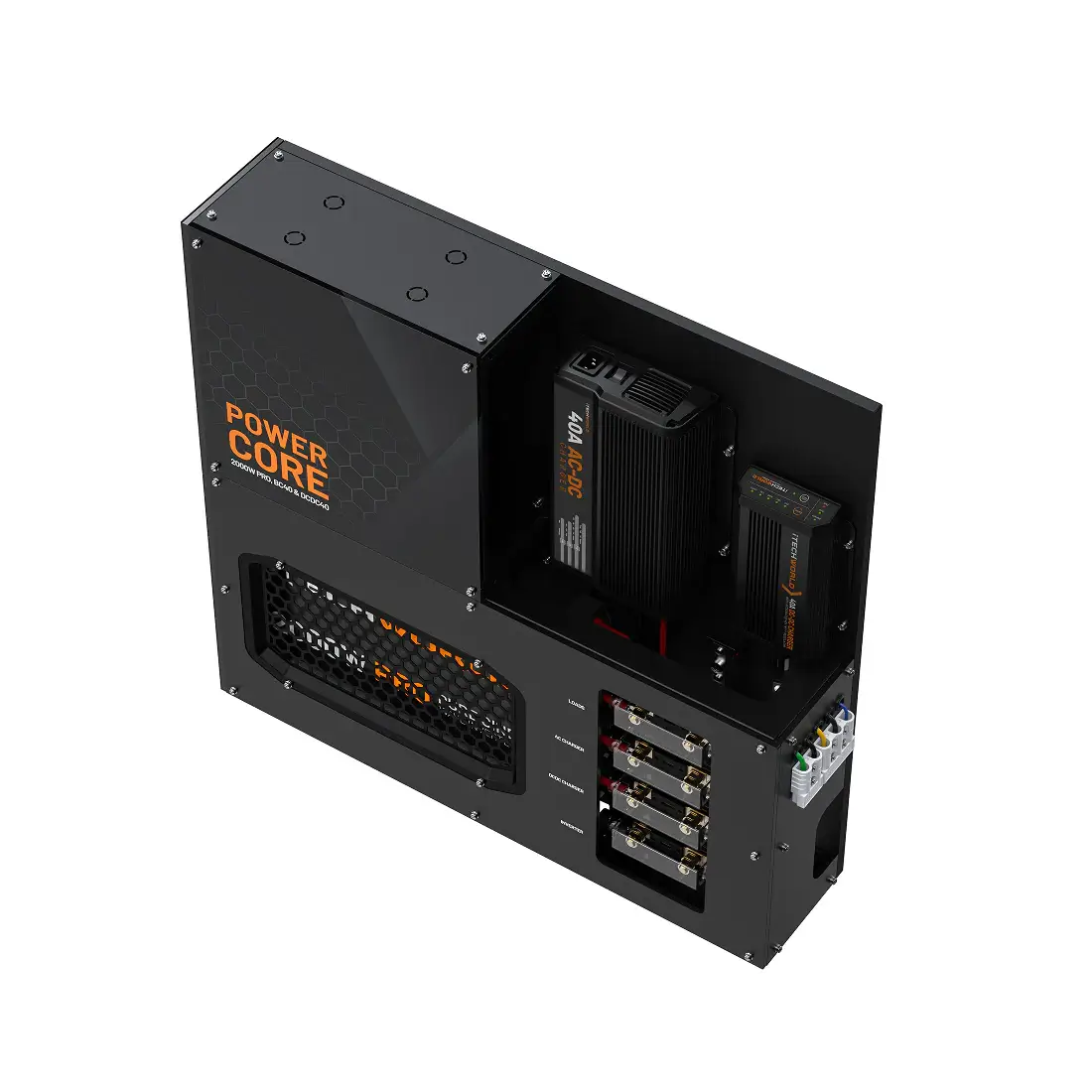

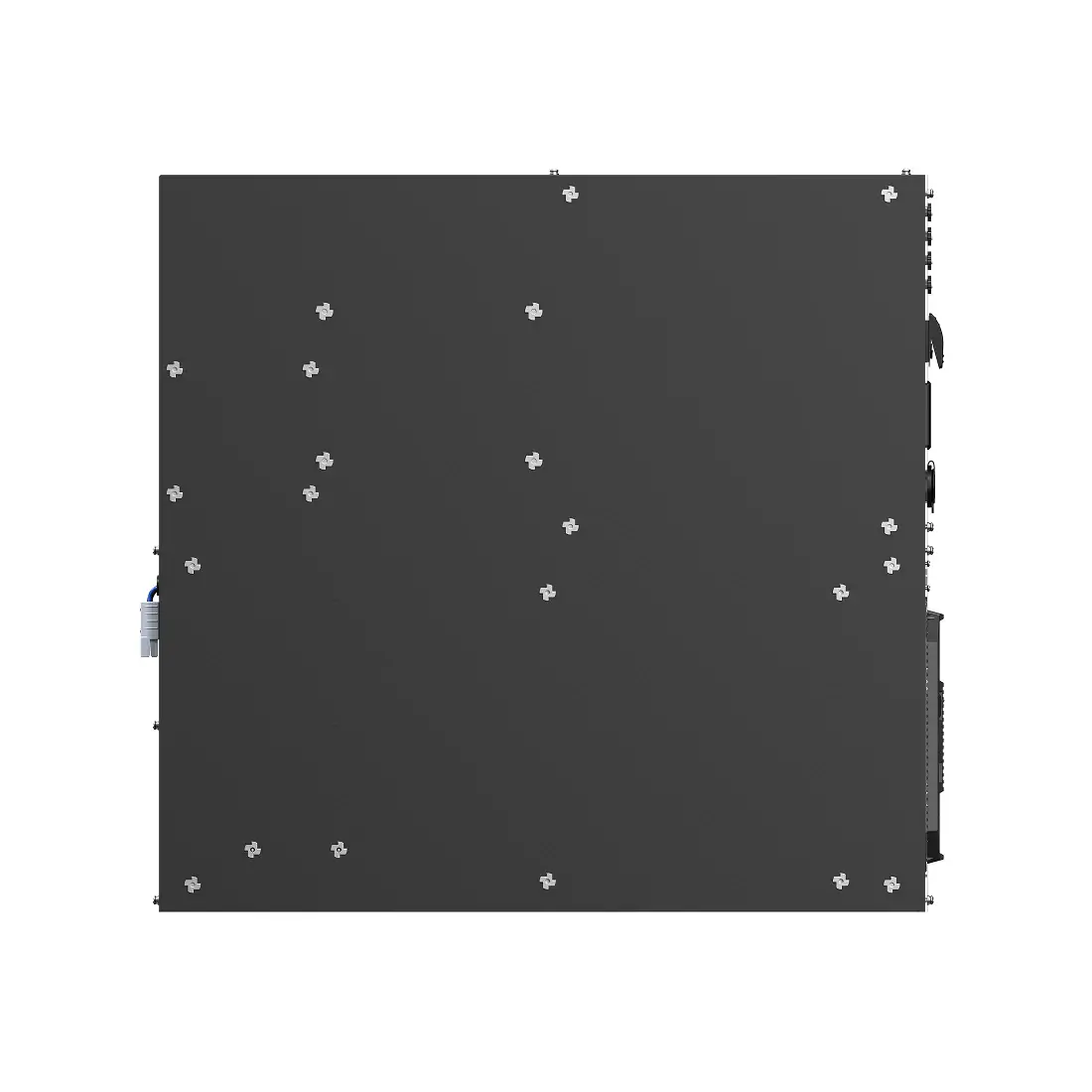

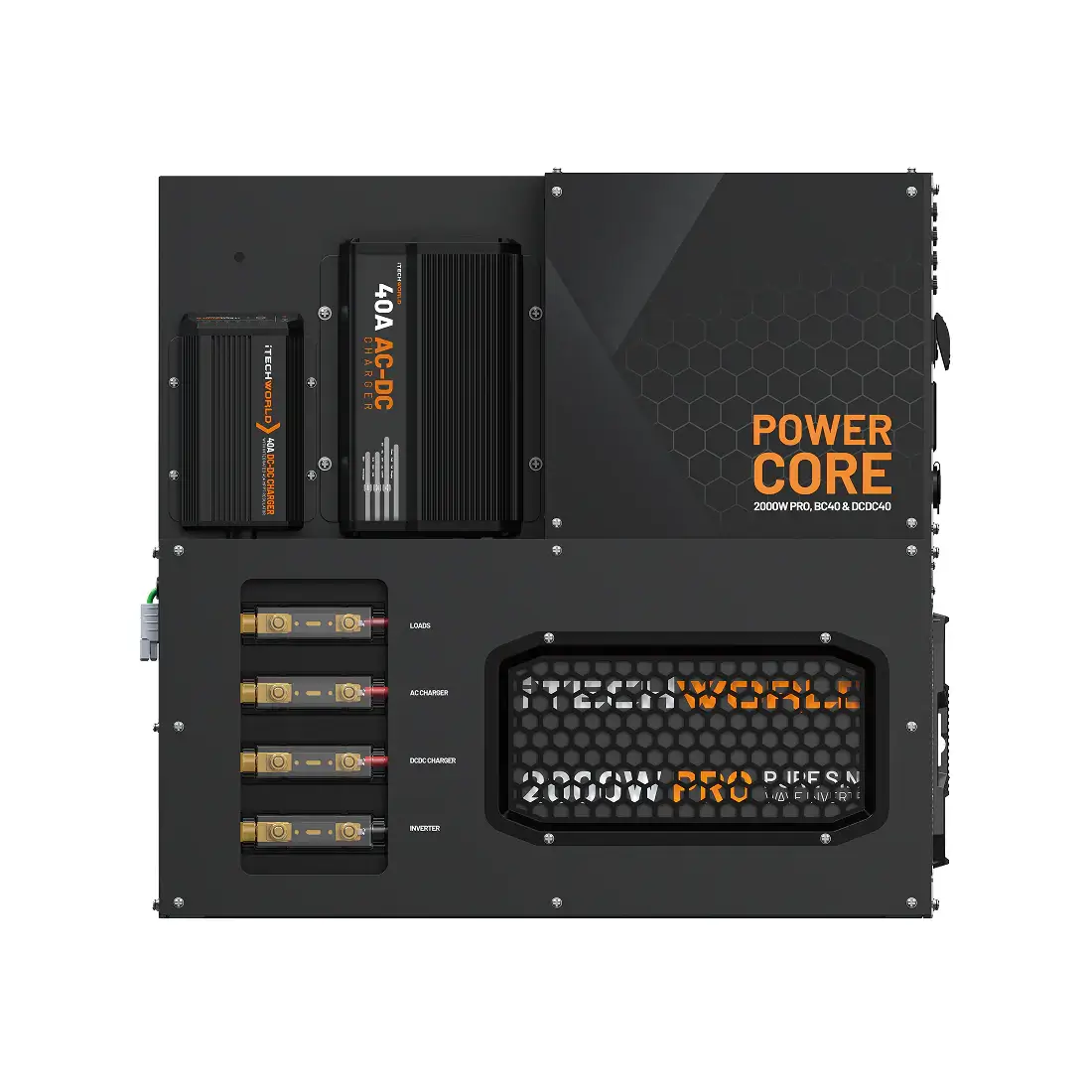

iTechWorld Power Core System – Reliable Power for Your Next Adventure!

Ever tried setting up power in your camper only to feel like you’re wrestling a bloody octopus with all those wires? The iTechWorld Power Core All-in-One Complete System sorts all that out for you, it’s a neat, pre-wired powerhouse that takes the guesswork out of getting reliable 12 V power on the road or off the grid.

No more grumbling at confusing manuals or praying your gear will last the weekend, this unit keeps your lights bright, fridge cool, and gadgets charged without the dramas. Sick of batteries flat as a tack?

Get your Power Core today and start enjoying effortless power wherever you park your rig!

Why The iTech Power Core May Be Right For You:

• Enjoy hassle-free power straight away thanks to the fully pre-wired all-in-one Power Core system, so you can get set up quicker and spend more time enjoying the great outdoors.

• Keep your fridge cold and your lights running with confidence using the high-performance 12V power management built into the Power Core, so you won’t be left in the dark out bush.

• Save yourself the headache of messy wiring with the neat, compact plug-and-play design of the iTechWorld Power Core, so your canopy or camper stays tidy and stress-free.

• Power all your essential gear safely with the integrated protection and smart system controls inside the Power Core unit, so you can travel knowing your setup won’t let you down.

• Get reliable off-grid freedom with the complete all-in-one battery and power solution from iTechWorld, so you can camp further, stay longer, and skip the powered sites altogether.

iTech Power Core Package Contents:

• Power Core
• User Guide
• 35 x M4 Combination screws
• 4 x M3 Tapping screws
• 12 x Spare ANL fuses
• 10 x Terminal spades
• 20 x Terminal rings
• iTECHBC40 AC input cable

iTechWorld Canopy Power System User Manual:

iTechWorld Power Core System Tech Specs

• Size: 668 × 151 × 641mm

• Weight: 21.8kg

• Backlit Rocker Switches: 4 × 20A (easy to see at night)

• USB Output: 18W

• USB-C Output: 30W

• Cigarette Socket Output: 12V 15A

• Anderson Plug In/Out: 2 × 50A

• Battery Compatibility: Works with Lead Acid, GEL, AGM, Calcium & Lithium (LiFePO4)

---

iTECHDCDC40 – DC-DC Charger Specs

• Alternator Input Voltage: 9V – 32V

• Solar Input Voltage: 10V – 32V

• Max Input Current: 45A

• Standby Power Draw: <15mA (won’t drain your battery sitting idle)

• Continuous Output Current: 40A

Selectable Battery Charging Profiles:

• STD, GEL, AGM, Calcium & LiFePO4

Charging Voltages:

• Absorption: 14.1V – 15.5V (depending on battery type)

• Float: 13.4V – 13.6V

Smart Alternator & Solar Cut-On Settings Included

---

iTECHBC40 – AC Battery Charger Specs

• Input Voltage: 220V – 240V

• Input Frequency: 50Hz – 60Hz

• Max Input Current: 4.8A

• Max Input Power: 700W

• Standby Current: <2mA

• Continuous Output Current: 40A

Battery Type Selection:

• STD, GEL, AGM, Calcium & LiFePO4

Charging Voltages:

• Absorption: Up to 15.5V

• Float: Around 13.4V – 13.6V

---

iTECH2000WPRO – Pure Sine Wave Inverter Specs

• Waveform: Pure Sine Wave (safe for sensitive electronics)

• Input Voltage Range: 10.5V – 15.5V

• Max Input Current: 156.3A

• Efficiency: 90%

• Harmonic Distortion: <3% (nice clean power)

Output Power:

• Continuous: 2000W

• Peak: 4000W

• Output Voltage: 240V

• Output Frequency: 50Hz

• Output Plug Rating: 10A

ATS (Automatic Transfer Switch):

• Continuous Output: 3600W

• Transfer Time: 30ms

Remote Control:

• RJ12 Port

• Remote Size: 86 × 86 × 19mm

Safety:

• RCD Trip Current: 20A

---

iTECHBM500 – Battery Monitor Specs

• Input Voltage Range: 10V – 100V

• Max Current Handling: 500A

• Accuracy: ±1% (Voltage, Current, Capacity)

Power Consumption:

• Screen Off: <2mA

• 20% Brightness: <20mA

• Full Brightness: <60mA
